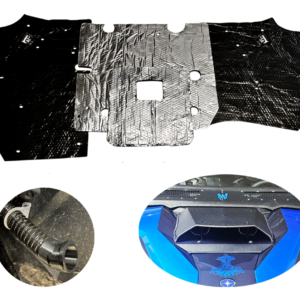

Heat Separator

Made from double sided radiant aluminum with a 5mm insulating core to reflect and dissipate heat. The main portion is 4 pieces to effectively prevent the radiator air from coming into contact with front plastic. It seals All the way up to the bottom of the main hood panels.
WORKS BEST WHEN COMBINED WITH OUR OTHER COOL CAB KITS.
You may ask. What about when its cold in the winter. Well that’s not a problem with our added heat pump heating system option.

Introducing the Cool Cab Air Ram and Heat Separator, a revolutionary

system designed to keep your cab comfortable in all conditions. This

cutting-edge solution prevents radiator heat from entering the cab,

whether you have a windshield installed or not. With its versatile

design, this kit can also transform into a heater for winter months,

thanks to optional interchangeable parts available separately or as a

combo.

The Heat Separator features a robust aluminum face and a flexible heat

shield, positioned between the radiator and the thin plastic front

firewall. Once installed, the Cool Cab Air Ram system channels cool air

between the heat separator and the firewall. This cooler air, which

drops down, flows out through the floor, effectively reducing the heat

within the cab. Additionally, the Air Ram system is equipped with two

air ducts that direct air to the lower footwells, alleviating negative

pressure and enhancing cabin cooling.

Installation of this system takes just a few hours, but the benefits are

substantial. For optimal performance, it’s recommended to pair it with

our other Cool Cab products. After extensive testing and various

configurations, we’ve perfected this design. Thermal imaging tests

reveal that, on an 85-degree day, the firewall temperature can soar to

165 degrees. The Air Ram alone reduces temperatures by 20-30 degrees,

while the combined Air Ram and Heat Separator system achieves an

impressive 50-60 degree reduction, even with both front and back

windshields installed. This means that with a sealed cab—whether with

our Cool Cab Kits or your own DIY solutions—this system effectively

mitigates most of that excessive heat.

In winter, the kit adapts to keep your cab warm. Simply replace the Air

Ram base with our patent-pending heat pump, which draws hot air from the

radiator and distributes it through the existing ducts, providing

efficient heating without the need to tap into the coolant system.

The Cool Cab Air Ram and Heat Separator is engineered to deliver comfort

year-round, offering a seamless transition between cooling and heating

with minimal effort.

As an added bonus, during the summer, you can attach the blower to the

summertime cooling base to boost the flow of cool air at the touch of a

switch, enhancing your cabin’s comfort even further.
