Description
Air Ram Cool Cab and Heat Separator Combo Kit
WORKS BEST WHEN COMBINED WITH OUR OTHER COOL CAB KITS.
You may ask. What about when its cold in the winter. Well that’s not a problem with our added heat pump heating system option.
This is the Air Ram system. It forces compressed air via an inside air foil down in between the heat shield and the front cab plastic. Since the cooler air drops it makes it all the way to the floor boards while insuring no heat can build since radiator heat is not mixed in. What make it even better is compressed air is introduced to 2 low pressure ducts, pushing and pulling cooler air into the foot area of the cab further diminishing any heat from the radiator lines. This system complements our other Cool Cab Kits Like nothing else. Even if you have a full windshield! That is how 95% of our testing was done. I Guarantee it!
This is a picture of the created cavity where the cooler air is added to prevent heat build up.
The heat shield separates the hot radiator air all the way across the fire wall. where cooler air is introduced. Keeping you cooler. #wolfsnout
The is a view of the cab vent/ low pressure relief ducts entering
the front firewall forcing cooler air into the lower section of the cabin
making those hot days enjoyable. #coolcab #wolfsnout This summer
My son said, “I would rather be in the machine riding than sitting in the heat outside”
This view shows the hood scoop and heat shield
together, installed.
This just shows how cool the hood scoop looks.
At our testing grounds. 1900 miles of testing every
configuration you can think to get the final piece right.
Raw aluminum finish available for less for those who
may want to customize.
You can see inside.
Summer base with Cool Cab push pull air ducts.
before the cap is installed. This base can be easily
changed out for our heat pump base. It turns this system
into a unique cab heating system in the winter months.
It pulls heat straight from the radiator and pumps in to the cabin
with no plumbing or time consuming mess.
Cab pressure relief and cool air supply.
Description
Introducing the Cool Cab Air Ram and Heat Separator, a revolutionary
system designed to keep your cab comfortable in all conditions. This
cutting-edge solution prevents radiator heat from entering the cab,
whether you have a windshield installed or not. With its versatile
design, this kit can also transform into a heater for winter months,
thanks to optional interchangeable parts available separately or as a
combo.

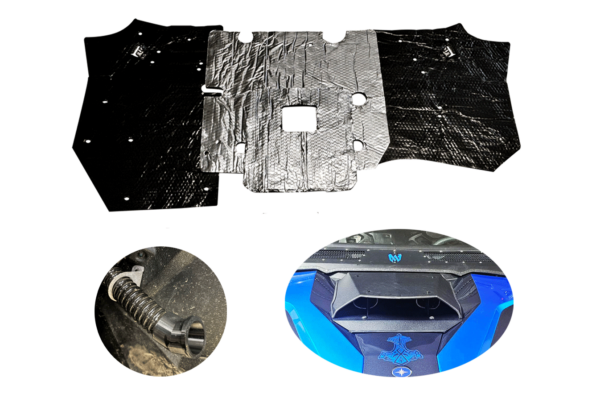

The Heat Separator features a robust aluminum face and a flexible heat
shield, positioned between the radiator and the thin plastic front
firewall. Once installed, the Cool Cab Air Ram system channels cool air
between the heat separator and the firewall. This cooler air, which
drops down, flows out through the floor, effectively reducing the heat
within the cab. Additionally, the Air Ram system is equipped with two
air ducts that direct air to the lower footwells, alleviating negative
pressure and enhancing cabin cooling.
Installation of this system takes just a few hours, but the benefits are
substantial. For optimal performance, it’s recommended to pair it with
our other Cool Cab products. After extensive testing and various
configurations, we’ve perfected this design. Thermal imaging tests
reveal that, on an 85-degree day, the firewall temperature can soar to
165 degrees. The Air Ram alone reduces temperatures by 20-30 degrees,
while the combined Air Ram and Heat Separator system achieves an
impressive 50-60 degree reduction, even with both front and back
windshields installed. This means that with a sealed cab—whether with
our Cool Cab Kits or your own DIY solutions—this system effectively
mitigates most of that excessive heat.
In winter, the kit adapts to keep your cab warm. Simply replace the Air
Ram base with our patent-pending heat pump, which draws hot air from the
radiator and distributes it through the existing ducts, providing
efficient heating without the need to tap into the coolant system.
The Cool Cab Air Ram and Heat Separator is engineered to deliver comfort
year-round, offering a seamless transition between cooling and heating
with minimal effort.
As an added bonus, during the summer, you can attach the blower to the
summertime cooling base to boost the flow of cool air at the touch of a
switch, enhancing your cabin’s comfort even further.
